AS7539A - 3-Wire Universal Bridge Amplifier for Load Cells

The AS7539A is a universal 3-wire amplifier providing five modes of operation (current/voltage and unipolar/bipolar outputs). It has individual multi-turn potentiometers for the precise setting of Zero and Span and is also available with mid. zero output (12mA for example) for compression / tension transducers.

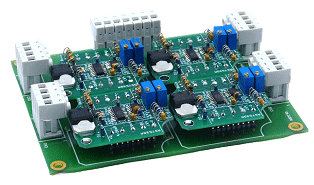

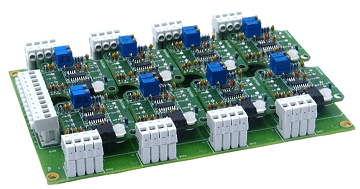

The inputs provide EMI-/RF-suppression. Transducer wires can be easily clamped onto the board. Two additional extension boards (ASM1) are also available providing multiple transducer processing (allowing up to 4- or 8-amplifiers), along with rugged aluminium enclosures offering IP66 protection.





Features
Wide range power supply 12-24V
10V stabilised bridge excitation
Bridge resistance 87 Ohm (or greater)
Bridge sensitivity 0.3mV/V - 3mV/V
Size 48mm x 41mm x 19mm height
Fast calibration procedure
Reverse-polarity protection





Applications
Load-Cell Industrial Weighing
Strain-gauge Load Testing & Monitoring
Overload Protection Systems


About Asset Instruments Engineering Ltd
Asset Instruments Engineering is an ODM (Original Design Manufacturer) manufacturer and OEM electronic services provider. We specialise in instrumentation products, supplying manufacturers of load cells, strain gauges, pressure sensors, hydrostatic transmitters, and many other system manufacturers with a wide range of products including Amplifiers, Digital Indicators and Wireless Modules to integrate into their products and systems.


For more information, please contact:-

Asset Instruments Engineering Ltd.
The Workshop, 32-40 Tontine Street, Folkestone CT20 1JU

Tel: +44(0) 7763 740906
Email:
info@aieng.co.uk
Web:
www.aieng.co.uk

April 2021
