Baumer UK - PRODUCT NEWS
LASER DISTANCE SENSORS COMBINE OUTSTANDING ACCURACY AND RELIABILITY WITH OPTIMAL CONNECTIVITY

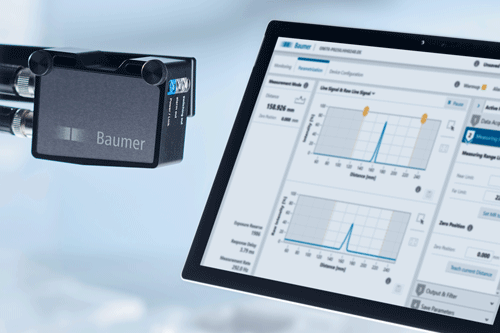

The latest range of OM70 laser distance sensors available from sensing and instrumentation specialists BAUMER are designed to provide reliable and precise inline measurements, even on more challenging and inconsistent structured surfaces and materials. They also include the very latest connectivity options for outstanding usability and fast analysis for quick and easy sensor adjustment via the intuitive Baumer web interface feature.
OM70 sensors feature one of the thinnest beam shapes compared to other types of laser sensors and this is crucial in helping to ensure a more precise measuring focus. For example, most point type lasers typically only go down to 0.2mm x 0.75mm whereas the OM70 goes down to 0.05mm x 0.05mm. This feature optimises the sensors receiving array enabling it to fully exploit the information content and minimises measuring impairments caused by irregularities such as machining marks, tiny scratches or dents which can impair the performance of other types of laser sensors.
The range includes options which cover a wide range of measuring and sensor applications. For example, the OM70 offers the highest precision at the closest ranges with precise inline measurement and a selectable range with a sweet spot up to 250mm. This means reliable measurement regardless of the object thanks to its point and line beam shapes. A second option is available which ensures reproducibility of long distance measurements up to 1500mm.
Along with these is the OM70-T which provides tolerance measurement and dimensional accuracy checks, essentially an even more high performance option for the most demanding measuring applications.
This is crucial in helping to improve product quality with non-contact dimensional accuracy checks and can also be quickly adjusted to the measurement task using the integrated web interface.
The precise and reliable performance characteristics apply across the OM70 range. This means users have the confidence of unrivalled measurement, compared to other options available, particularly in the most challenging environmental conditions like poor ambient light, or dusty environments. For example, OM70 sensors have high ambient light immunity up to 28kLux whereas most other options only go up to 7.5kLux. In addition an automatic light adaption function which can power itself up means the sensors can see through dark or dusty environments and receive a stable reflection back. Finally, reliable results and measurements can be achieved, even on demanding surfaces, thanks to the extra fine line beam and stable measurement signals, thanks to functions such as automatic exposure control and adjustable filters.
About Baumer Ltd:
Baumer Ltd is part of a family owned company which operates on a global scale employing around 2400 people in 38 subsidiaries across 19 countries Worldwide. Baumer is acknowledged as a leading supplier of sensors, encoders, measuring instruments and components for automated image processing. Baumer is your partner for, Food & Beverage Sensing, Food & Beverage Processing, Assembly and Handling, Material Handling, Encoders and Motion Control Solutions.
For more information, please contact:
33 / 36 Shrivenham Hundred Business Park, Majors Road, Swindon, UK, SN6 8TZ
Tel: +44 1793 783839
Email: email@example.com Website: www.baumer.com
MGA Controls Ltd.
Tel: +44 (0) 1704 898980
Contact: Chris Makin - Email: firstname.lastname@example.org
Web : www.mgacontrols.com
