LOWER COST INLINE TESTING AND MULTIDIMENSIONAL CONTROL THANKS TO SMART PROFILE SENSORS

Efficient inline testing is a prerequisite in many manufacturing processes, helping to reduce downtime, minimising rejection rates and contributing to lower production costs and improved quality control. A key component of most systems are sensors and the continuing advances in sensor technology is helping to provide simpler alternatives for checking a large number of process steps quickly and easily, without the need for expensive, complex systems.

A good example of this is the OXM200 sensor developed by sensing and instrumentation specialists BAUMER which represents a ‘smart’ multi-profile sensor ideally suited to inspection and measuring applications. It provides an almost unlimited operating range, providing users with ultra-efficient inline checks and multi-dimensional control of their manufacturing and processing systems,

This compact, all-in-one, lightweight and calibrated sensor can be quickly installed for immediate use and easily adjusted thanks to an integrated web-browser, without the need for external software. Also, it’s Power-over-Ethernet (POE) functionality means the sensor can be used with a single cable.

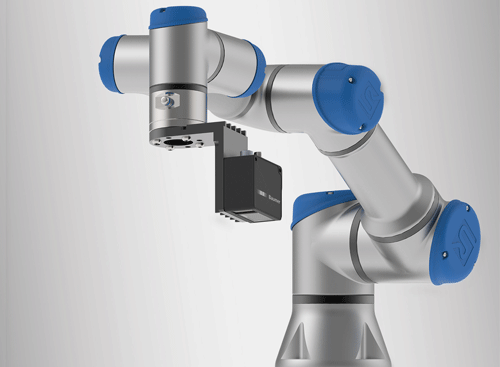

It is designed for integration into image processing systems projecting a laser line onto the object to be inspected. The projected light is reflected from the object and imaged on the integrated camera inside the sensor which provides a two-dimensional profile of the objects surface. With predefined integrated measurement tools, dimensions of objects along the laser line (X-Y) can be measured and inspected. This allows extensive profile analysis for testing and inspection tasks for applications such as; height checks of assembly parts, collision checks in assembly as well as control and positioning tasks in robotics including the position control of feed parts for pick-and-place, or gap checks in car body construction.

Up to 7 measurement values can be freely configured with graphical support and in addition to these integrated functions OXM200 sensors offer the possibility of linking measuring tools to perform even more versatile analyses. For example, even inspecting items on a conveyor belt with varying positions can be easily and reliably performed thanks to position tracking. Another advantage is the live ‘visualisation’ of the measuring tasks in the web interface and settings in the sensor can be directly checked, adjusted and optimised.

Easy integration into automation systems is possible courtesy of a wide selection of protocols including; PROFINET, Modbus TCP, UDP, IO-Link, analog and switching outputs. Direct connection to IT systems and cloud integration with OPC UA, in addition to image processing systems with an SDK (profile data via UDP streaming), is also possible. In addition to the pure profile measurement function, OXM200 sensors offer easy access to secondary data such as temperature, or operating hours. All these benefits add up to overall process optimisation for increasing plant effectiveness.

More Information >>


About Baumer Ltd:
Baumer Ltd is part of a family owned company which operates on a global scale employing around 2400 people in 38 subsidiaries across 19 countries Worldwide. Baumer is acknowledged as a leading supplier of sensors, encoders, measuring instruments and components for automated image processing. Baumer is your partner for, Food & Beverage Sensing, Food & Beverage Processing, Assembly and Handling, Material Handling, Encoders and Motion Control Solutions.


For more information, please contact:

Jon Sumner
Baumer Ltd.
33 / 36 Shrivenham Hundred Business Park, Majors Road, Swindon, UK, SN6 8TZ
Tel: +44 1793 783839
Email:
sales.uk@baumer.com Website: www.baumer.com

February 2021
