PRECISE, RELIABLE DETECTION OF MARKS AND COLOUR CONTRAST

Contrast and luminescence Sensors are usually the ‘go to’ device for reliable detection of print marks and colour variances even at very low contrasts and are typically used for applications such as printing, labelling and packaging.

Sensing and instrumentation specialists BAUMER have developed one of the widest ranges of innovative sensing products and are now acknowledged as being one of the leading ‘one-stop-shops’ for most process to packaging applications. A good example of this is their new range of OC50 / OC60 Contrast and Luminescence Sensors which provide reliable and precise detection of minute and invisible print marks even at very fast speeds thanks to low jitter>7µs. ‘Jitter’ is best described as any deviation in, or displacement of the signal pulses in a high-frequency digital signal and the amount of ‘allowable jitter’ is highly dependent on the sensing application.

Developed on the intensity discrimination principle the OC50 is a basic contrast sensor with the ability to detect even the smallest differences between a mark and the background with a Jitter of >25 µs. It features RGB LED and single-lens optics, PMMA lenses all contained in a compact and robust plastic housing. It also has static teach-in with LED display and is available with optical lenses for distances up to 18mm.

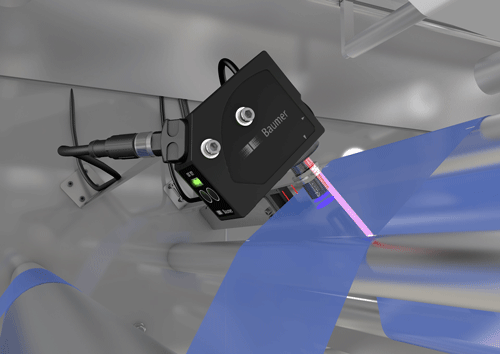

The OC60 is offered for higher performance contrast sensing for lower Jitter measurements of >7 µs using the same RGB LED single lens optics as the OC50 although with glass lenses, static and dynamic teach-in within a metal housing. Optical lenses for this option are available for distance up to 40mm. The OC60 also has an adjustable cable outlet in 5 positions along with industry standard front and side mounting options. These features, along with a sensing beam that can leave the unit either vertically or horizontally ensures maximum positioning flexibility.

The OC60 luminescence sensing option features UV LED single lens optics, glass lenses and is designed for effective detection of fluorescent markings and can be adjusted for 5 sensitivity levels. It provides very quick response times of 0.34 ms and is available with optical lenses for distances up to 50mm.

The OC60D has a colour mode to detect not only the contrast but also the actual colour so is particularly suitable for colour detecting and sorting applications, such as those required for packaging in the food and drink processing industries.

View Video >>

More Information >>


About Baumer Ltd:
Baumer Ltd is part of a family owned company which operates on a global scale employing around 2400 people in 38 subsidiaries across 19 countries Worldwide. Baumer is acknowledged as a leading supplier of sensors, encoders, measuring instruments and components for automated image processing. Baumer is your partner for, Food & Beverage Sensing, Food & Beverage Processing, Assembly and Handling, Material Handling, Encoders and Motion Control Solutions.


For more information, please contact:

Jon Sumner
Baumer Ltd.
33 / 36 Shrivenham Hundred Business Park, Majors Road, Swindon, UK, SN6 8TZ
Tel: +44 1793 783839
Email:
sales.uk@baumer.com Website: www.baumer.com
