SMART, HEAVY
DUTY ENCODERS IDEAL FOR CHALLENGING APPLICATIONS
The latest
Smart Heavy Duty Encoders developed by sensor specialist BAUMER
are ideal for demanding heavier industrial applications, such
as; Aggregates, Steel, Materials Handling, Ports, Cranes and

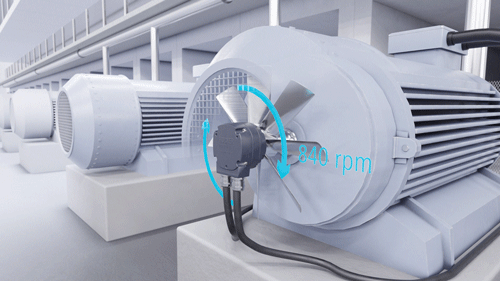

Paper Mills. They represent the perfect choice for monitoring
applications which include asynchronous motors.

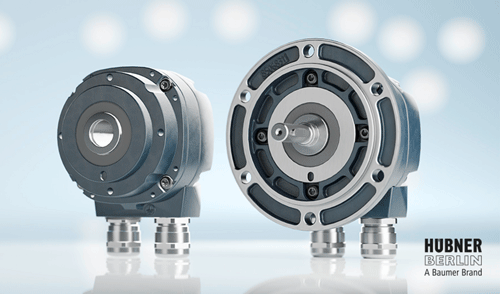

These uncompromisingly robust encoders are part of the incremental
heavy duty HOG800 series which includes 3 options. The HOG840
a cost-effective option ideally suited to wind turbines and machinery,
the HOG860 designed for more challenging applications featuring
asynchronous drives and the HOG870, developed as a heavy duty
encoder with redundant sensing and evaluation.
Among the key features of these robust encoders is enhanced protection
against corrosion, shaft currents, overvoltage and mechanical
stress. Additionally, Baumer has adopted the 'smart' functions
of its broader industrial encoder products into these heavy duty
options. For example, intelligent parameterisation of resolution,
output level and rotation direction. New functions to monitor
sensor status, temperature and operating time are also available.
An important feature of the HOG800 Series is their space-saving
design with housings of merely 84mm in width, which, along with
a sealed and user-friendly design, enables easier on-site installation,
even in demanding conditions. Another important benefit is the
encapsulated sensing unit which during terminal box installation
is protected against ingress of dirt and dust with an IP40 rating.
The terminal box features plug-in terminals to ensure easy and
safe wiring while the wires inside are separated from the shaft
to prevent cables becoming jammed or damaged.
Let's take a closer look at the HOG800 variants
The HOG840 features high C4 corrosion protection to DIN EN ISO
12944 standards and is capable of operating in applications with
temperatures ranging from -30 to 85ºC and cable lengths
of up to 200 meters (HTL-P).
The HOG860 is designed for demanding applications on machines
and asynchronous drives. It features extended electrical protection,
specialised parameterisation options, status monitoring as well
as an extended operating temperature range from -40 to 100ºC,
along with CX corrosion protection.
The third option is the HOG870, a redundant heavy duty encoder
with redundant sensing and evaluation, incorporating 6 additional
outputs and designed for safety relevant applications. Additionally,
for incremental signals the HOG890 features three digital switches
for long distance transmissions of standstill, speed, direction
and status information to control units.
