E+E Elektronik GmbH - PRODUCT NEWS

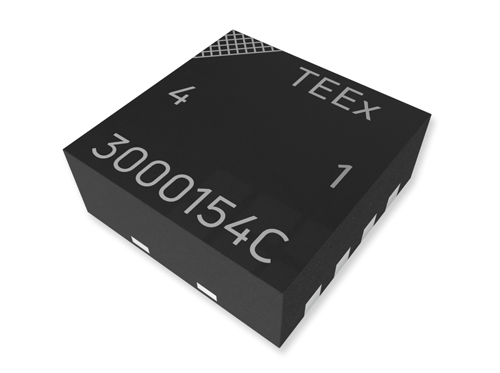

Digital Temperature Sensing Element by E+E Elektronik


Austrian sensor manufacturer E+E Elektronik presents its first digital temperature sensing element in the form of the TEE501. It impresses with a measurement accuracy of up to ±0.2 °C and a wide temperature range. The small DFN enclosure with integrated pull-up resistors facilitates the design-in of the sensing element.

Highly accurate and versatile in use

The TEE501 sensing element is suitable for temperature measurement in an operating range of -40 °C to 135 °C. Multi-point temperature adjustment as a factory standard ensures outstanding measurement accuracy of up to ±0.2 °C. The very good measuring performance and excellent repeatability make the sensing element the perfect solution for demanding measurement tasks. The TEE501's potential uses are versatile and range from building automation and household electronics through to medical devices.

Easy-to-integrate DFN package
The small dual-flat-no-leads (DFN)-enclosure has a footprint of only 2.5 x 2.5 mm2, which means that it can be accommodated in virtually any application. The integrated pull-up resistors additionally facilitate integration with the customer's design. The sensing element requires a supply voltage of 2.35 – 3.60 V for operations.

Data communication via I2C interface
The I2C interface ensures interference-free data communication with the TEE501, supporting communication speeds of 100 / 400 / 1000 kHz. The measured values are output in a 16-bit integer format and are directly available for downstream processing. Robust I2C interface communication is ensured by a CRC checksum and glitch suppression.

Individually selectable I2C addresses make it possible to operate up to 8 sensing elements on a single I2C bus.


About E+E Elektronik:
E+E Elektronik develops and manufactures sensors and transmitters for humidity, temperature, dewpoint, moisture in oil, air velocity, flow and CO2. Data loggers, hand-held measuring devices and calibration systems complete the comprehensive product portfolio of the Austrian sensor specialist. The main applications for E+E products lie in HVAC, building automation, industrial process control and the automotive industry. A certified quality management system according to ISO 9001 and ISO/TS 16949 ensures the highest quality standards. E+E Elektronik has a worldwide dealership network and representative offices in Germany, France, Italy, Korea, China and the United States. The accredited E+E calibration laboratory (OEKD) has been commissioned by the Austrian Federal Office for Metrology (BEV) to provide the national standards for humidity and air velocity.
For more information, please contact :-

E+E Elektronik Ges.m.b.H.
Langwiesen 7
A-4209 Engerwitzdorf, AUSTRIA
Phone: +43 (0)7235 605-0
Fax: +43 (0)7235 605-8
Email: info@epluse.com
Web:
www.epluse.com

May 2022
