E+E Elektronik GmbH - PRODUCT NEWS

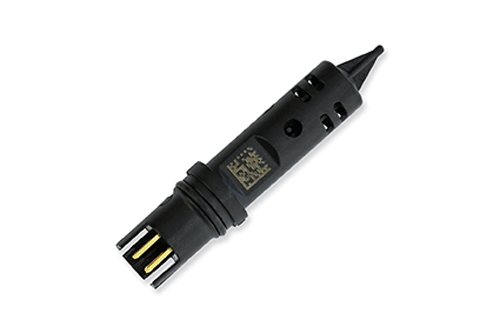

Digital Sensing Module for Cost-efficient Humidity and Temperature Measurement

The HTM502 sensing module by Austrian sensor manufacturer E+E Elektronik offers a cost-effective solution for humidity and temperature measurement. It is characterised by easy implementation, high accuracy and reliability. Integration and interchangeability via the I2C interface allow for rapid project implementation. The integrated sensor protection and the mechanically robust enclosure support a wide range of applications. The module is particularly suitable for price-sensitive applications in the HVAC sector but also for industrial applications.

Excellent measurement accuracy, robust design
The HTM502 sensing module measures humidity and temperature with an accuracy of ±2.0% RH and ±0.3 °C (0.54 °F) and can be used in applications between 5 °C and 60 °C (41...140 °F). The robust enclosure gives the module great mechanical stability and ensures ease of handling by preventing accidental contact with the sensing element. The integrated E+E sensor coating protects the sensing element against dirt and corrosion, improving measurement performance and long-term stability in harsh and demanding environments.

Rapid integration via I2C
The I2C interface allows for easy integration of the humidity and temperature module, meaning that projects can be quickly implemented. The HTM502 offers two measurement operating modes (single-shot or periodic measurement mode) and supports communication speeds up to 1000 kHz. Thanks to the low supply voltage of 2.35 – 3.60 V and the low current requirement, the module is also suitable for applications with low energy consumption.

Easy installation and replacement
The HTM502's design lends itself to easy installation without additional implementation overhead or soldering work. Thanks to the 4-pin connector plug, the sensing module can quickly be replaced in the field.


About E+E Elektronik:
E+E Elektronik develops and manufactures sensors and transmitters for humidity, temperature, dewpoint, moisture in oil, air velocity, flow and CO2. Data loggers, hand-held measuring devices and calibration systems complete the comprehensive product portfolio of the Austrian sensor specialist. The main applications for E+E products lie in HVAC, building automation, industrial process control and the automotive industry. A certified quality management system according to ISO 9001 and ISO/TS 16949 ensures the highest quality standards. E+E Elektronik has a worldwide dealership network and representative offices in Germany, France, Italy, Korea, China and the United States. The accredited E+E calibration laboratory (OEKD) has been commissioned by the Austrian Federal Office for Metrology (BEV) to provide the national standards for humidity and air velocity.
For more information, please contact :-

E+E Elektronik Ges.m.b.H.
Langwiesen 7
A-4209 Engerwitzdorf, AUSTRIA
Phone: +43 (0)7235 605-0
Fax: +43 (0)7235 605-8
Email: info@epluse.com
Web:
www.epluse.com

October 2022
