Ixthus Instrumentation Ltd. - PRODUCT NEWS

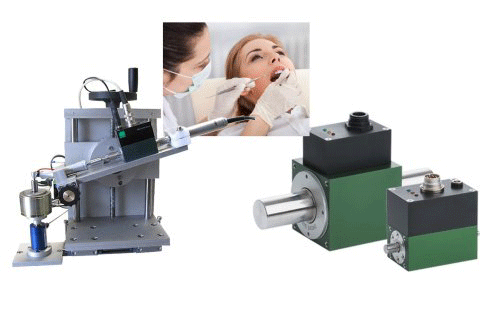

Image: 8661 series torque sensor ensure optimal screw fitting of titanium dental implants

Unusual measurement tasks for Burster load cells and force sensors – available from Ixthus Instrumentation

Ixthus Instrumentation Ltd is a distribution partner with Burster GmbH, the German precision instrument and sensor manufacturer, supplying complete solutions for torque, force, and angle measurement across a wide range of industries.


Amongst a diversity of more conventional measurement applications that include test stands for motor and drive performance evaluation and industrial press monitoring systems, Burster also undertakes more obscure requirements. For instance, its 8661 series torque sensor was recently assigned for use in an interesting task to ensure optimal screw fitting of titanium dental implants whilst a dual range version of the same sensor was used to measure the static and dynamic torques in a test setup for a desk fan. Equally unusual, Burster’s 8417 series load cell helped a bicycle component manufacturer to test the pulling forces of Bowden-type brake cables.

These more unusual applications all demand highly dynamic sensor performance through high resolution/precision measurement with high sampling rates and mechanical durability. The dental implant application measures ultra-low torque measurement around 15 to 50 Ncm at speeds up to 2000 rpm as part of a strict no-compromise surgical procedure. The desk fan evaluation measures bidirectional static and dynamic torque to ensure optimal performance in motor selection and fan design during the development phase of the product. Similarly the Bowden cable transmitted force measurement application helps cable designers ensure best performance for a range of cable diameter and radius of curvature simulated test set-ups.



Image: Burster’s 8661 series torque sensor measure the static and dynamic torques in a test setup for a desk fan

The 8661 series torque sensor has a 0 ... ±10 V output signal or optional USB interface for use with Burster’s DigiVision date acquisition PC software which also includes DLL and LabVIEW drivers. Available in several single range models from 0 ... 0.02 Nm up to 0 ... 1000 Nm as well as dual-range versions, the sensor can also be supplied with a 2000-line encoder to provide precise speed feedback as well as angular displacement to 0.09°. The 8417 series miniature cylindrical load cell covers measuring ranges from 0 ... 10 N to 0 ... 5 k for tension or compression force between its axially mounted metric exterior threads.

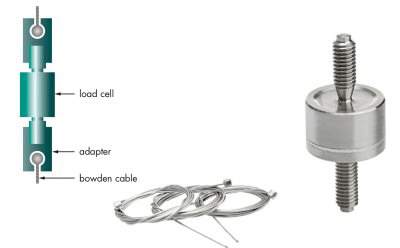

Image: Burster’s 8417 series load cell test the pulling forces of Bowden-type brake cables.

Burster’s wide range of sensor electronics extends to amplifier and transmitter modules, process control instruments, digital indicators, and more. As the exclusive UK and Ireland distribution partner for Burster GmbH and other globally leading sensor manufacturers, Ixthus Instrumentation Ltd provides a comprehensive measurement service from component level solutions to complete instrumentation systems.


About Ixthus
Ixthus works closely with leading global suppliers of non-contact sensing technologies as well as force, torque and vibration sensor and transducer manufacturers, providing a complete service with its knowledgeable technical staff available to solve customers' measurement problems - from the first enquiry to complete after-sales support.



For more information, please contact :-

Ixthus Instrumentation Limited
The Stables, Williams' Barns, Tiffield Road, Towcester, Northants NN12 6HP
Tel: +44 (0)1327 353437
Email :
graham.pattison@ixthus.com
Web:
www.ixthus.co.uk

November 2021
