Kistler NCFE

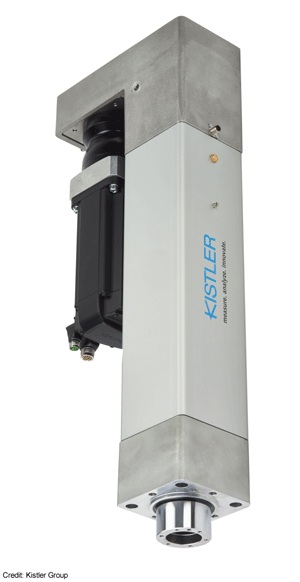

Kistler NCFE delivers cost effective simple joining processes

The new Kistler NCFE servopress solution is specifically designed for simple joining processes to deliver a cost-effective alternative to conventional pneumatic or hydraulic systems.


Compared to hydraulic or pneumatic units, the NCFE module offers impressively low energy consumption, simple handling and fast commissioning for applications in the measuring range from 10 to 80 kN.

A new era dawns for machine builders
The NCFE module is a cost-effective, off the shelf joining system using integrated sensor technology that gives users the benefit of complete end-to-end monitoring and control of the entire joining process. Installation and handling are made much simpler, so machine builders can design custom systems which deliver low energy consumption and flexibility.
Comprehensive control guaranteed by the maXYmos NC system.

The joining process is controlled by Kistler's maXYmos NC system, which evaluates and documents the force/displacement curves for joining and press-fit processes in conjunction with the joining modules and the matching IndraDrive servo amplifier. The patterns of measurement curves can be used to monitor the quality of a single production step, a sub-assembly or an entire product, with control in real time via SERCOS III. The benefits of optimal cycle times can be achieved with maximum repeat precision. Downtime is minimized and machine availability is increased boosting productivity for the entire manufacturing process.

The right joining system for every application
The Kistler NCFE module offers significantly greater efficiency than hydraulic and pneumatic joining processes. Savings potential with the electrical process is about 77% as compared to hydraulic and about 90% to pneumatic processes. Further cost savings accrue from the minimal maintenance needs of the NCFE system and 100% quality control in real time virtually eliminating rejects during production.


About the Kistler Group
Kistler is the global leader in dynamic measurement technology for measuring pressure, force, torque and acceleration. Cutting-edge technologies provide the basis for Kistler's modular solutions.
Customers in industry and science benefit from Kistler's experience as a development partner, enabling them to optimize their products and processes so as to secure a sustainable competitive edge. The owner-managed Swiss company's unique sensor technology plays a key role in the evolution of automobile development and industrial automation, as well as in numerous emerging sectors. With a broad knowledge of applications and an absolute commitment to quality, Kistler is making an important contribution to the further development of current megatrends. This includes topics such as electrified drive technology, automated and connected driving, emission reduction and Industry 4.0.
Some 2,200 employees at more than 60 locations worldwide are dedicated to developing new solutions and offer customized service for individual applications. Since its founding in 1959, the Kistler Group has grown along with its customers, generating sales of CHF 475 million in 2018. Approximately 8% of this went back into research and technology and thus into achieving better results for all our customers.



For more information, please contact :-

Kistler Instruments Ltd.
13 Murrell Green Business Park, London Road, Hook RG27 9GR
Tel: +44 (0)1256 741550
Fax: +44 (0)1256 741551
Email:
sales.uk@Kistler.com
Website: http://www.kistler.com

September 2019
