6-Axis Force/Moment Sensor from Kistler is precise and versatile

The new piezoelectric 6-component force/moment link, Type 9306A, from Kistler Instruments is equally suited to measuring the forces acting on electric hand tools, rocket engine test benches or robotics.


This new sensor delivers precise and direct measurements of three forces and three moments without calculation at very high resolution even under the most demanding operating conditions. The use of large-area quartz discs make for a very rigid sensor with a high natural frequency of 18kHz and low crosstalk of better than ±3.5% for highly dynamic force and moment measurements, especially when very small moments and forces are being measured.

The Type 9306A sensor is 90mm high, 62mm diameter and weighs 1.5kg. Where space is at a premium, the compact Type 9306A31 which is only 45mm high, 83mm diameter and weighs only 540g may be specified

Typical applications include:
Robot/Human interaction

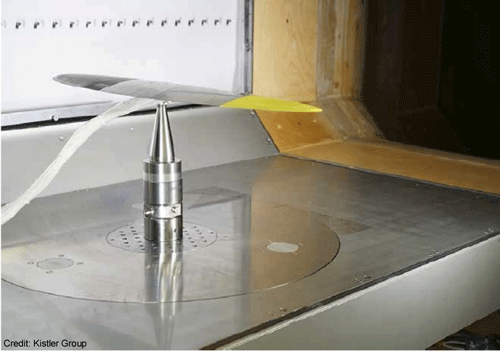

Wind tunnels
Aerospace
Medical

The Kistler LabAmp 5167A multi-channel quasistatic and dynamic charge amplifier with analog output and integrated data acquisition provides an ideal signal conditioning capability with the ability to adjust the moment and force measuring ranges independently for each axis. The scalable and configurable high performance system provides channel synchronization, signal filtering, virtual channels and evaluation of individual force signals whilst the integrated data acquisition simplifies the measuring chain and provides added flexibility.


About the Kistler Group
Kistler is the global leader in dynamic measurement technology for measuring pressure, force, torque and acceleration. Cutting-edge technologies provide the basis for Kistler's modular solutions.
Customers in industry and science benefit from Kistler's experience as a development partner, enabling them to optimize their products and processes so as to secure a sustainable competitive edge. The owner-managed Swiss company's unique sensor technology plays a key role in the evolution of automobile development and industrial automation, as well as in numerous emerging sectors. With a broad knowledge of applications and an absolute commitment to quality, Kistler is making an important contribution to the further development of current megatrends. This includes topics such as electrified drive technology, automated and connected driving, emission reduction and Industry 4.0.
Some 2,200 employees at more than 60 locations worldwide are dedicated to developing new solutions and offer customized service for individual applications. Since its founding in 1959, the Kistler Group has grown along with its customers, generating sales of CHF 475 million in 2018. Approximately 8% of this went back into research and technology and thus into achieving better results for all our customers.



For more information, please contact :-

Kistler Instruments Ltd.
13 Murrell Green Business Park, London Road, Hook RG27 9GR
Tel: +44 (0)1256 741550
Fax: +44 (0)1256 741551
Email:
sales.uk@Kistler.com
Website: http://www.kistler.com

January 2020
