Micro-Epsilon non-contact laser scanners enable height measurement and presence detection of beer bottles in moving crates

Non-contact laser scanners from Micro-Epsilon are being used to quickly and reliably recognise if all the beer bottles are present and the correct type in returned crates.

Beer bottles that come directly from the filling line or the brewery to the customer normally take the same route back, as glass bottles are recyclable, they can be refilled typically 40 to 50 times. The bottles arrive in their thousands at the breweries to be checked, washed and refilled. To ensure a smooth procedure of further machine processing such as the removal of caps and labels, as well as washing and refilling, it is necessary to inspect the crates at goods inwards. Completeness of the bottle is a crucial factor but ensuring that it is the correct bottle type in the right crate is also important.

Different bottle types are a challenge for bottlers and breweries. Often, the glass is trimmed with the brewery logo or the bottles were specially shaped for a certain manufacturer. It is estimated that more than one third of the bottles delivered to the breweries are in the wrong crate. Crates are often inspected manually, a process which is exhausting, subject to error and costly in terms of human inspection hours. The crates are moved on a conveyor belt which demands lots of concentration from the inspectors. If the inspectors become tired, the wrong bottles can slip through, or some crates might be incomplete.

Automated control of empties using non-contact laser scanners

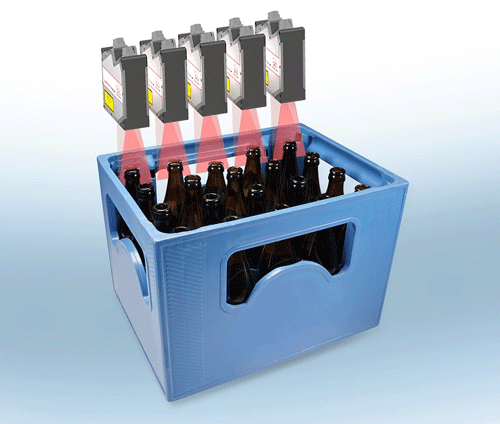

A more efficient inspection method, which is absolutely reliable, involves the use of non-contact laser scanners from Micro-Epsilon. Slovak company Tipteh has developed an inspection system using laser line triangulation sensors for fast, fully automatic inspection and is already being used for the inspection of the received beer bottle crates. This inline inspection system is equipped with five scanCONTROL 2900-50 laser scanners from Micro-Epsilon. In the production line, the scanners measure from above onto the crates which are moved along a conveyor belt. Each scanner measures a row of bottles in the crates. Presence detection is carried out at conveyor speeds of up to 850 mm/s.

Compared with solutions based on conventional image processing systems, laser scanners not only monitor the presence of a bottle but also the height of the bottle. The sensor uses the respective bottle height to determine whether the correct type of bottle is in the crate. The bottle height must not deviate by more than 3mm from the target height of the respective bottle type.

The PLC receives the result of the evaluation as an "OK" or "not OK" value, whereby any faulty crates can be removed directly from the production line. The user can also output the measured results via an integrated display on the control unit.

Conclusions
With dimensions of 96 x 85 x 33 mm and an integrated controller, the scanCONTROL 2900-50 laser scanner is a space-saving, automated solution for the inspection of empties at bottlers and breweries. The sensor operates at high speeds up to 2,000 profiles per second and is therefore ideal for both static and dynamic processes. The challenges of this measurement task primarily lie in the different reflective properties of the bottles.

These vary due to different glass colours (mainly green and brown tones). In addition, bottles can arrive with and without caps at goods inwards and these are recognised by the scanner using pre-stored algorithms. The bottles are also constantly vibrating and shaking while being transported on the conveyor belt. As the sensor captures all points across the line simultaneously, Micro-Epsilon laser scanners overcome these challenges. They can be positioned at a large distance from the measurement object and detect 1,280 measuring points per profile. They provide precise results while being insensitive to vibrations.

The measured values are evaluated directly in the production line. Via GigE Vision, raw data is integrated into image processing software and then evaluated. Data can be logged for subsequent statistics, evaluations and process optimisation. The sensors therefore score highly in terms of their precision, high speed and high reliability, while offering an economic solution for this specific application.

Measuring principle
The scanCONTROL laser scanner is based on the laser triangulation principle for two-dimensional profile detection. It emits a laser beam which is widened to a laser line that hits the measurement object. The laser light is reflected by the object surface and projected onto a highly-sensitive receiving matrix in the sensor. In addition to distance information (z-axis), the controller also uses this camera image to calculate the position along the laser line (x-axis). These measured values are then output in a two-dimensional coordinate system that is fixed with respect to the sensor. In the case of moving objects or a traversing sensor, it is therefore possible to obtain 3D measurement values.



Manufacturing processes throughout all industries are evolving at a rapid pace, and the quality and tolerances expected from the end user are forever increasing. Thus the need for smarter measurement solutions is continuously growing. Micro-Epsilon (www.micro-epsilon.co.uk) is renowned globally for being at the forefront of measurement technology.
For more than 50 years we have continuously offered reliable, high performance, unique solutions particularly when high precision measurement or inspection is required. Our product range covers sensors for the measurement of distance and displacement, sensors for IR temperature measurement and colour detection, as well as turnkey systems for dimensional measurement and defect detection.
We understand that our customers are our business partners, and aim to develop long term relationships with them.
We work closely with our customers to fully understand their requirements; our sales people are engineers and understand more than just the sensor performance. We are problem solvers.
We operate a fair working policy, which results in excellent customer service and support even post sale.
Our high performance products and way of working provide our customers with a genuine competitive advantage.


About Micro-Epsilon
Micro-Epsilon (www.micro-epsilon.co.uk) is a major global manufacturer of sensors, headquartered in Germany. The company's range of displacement sensors measure everything from to distance, position, vibration, dimensions and thickness, using both contact and non-contact measurement techniques. These techniques include 1D, 2D and even 3D laser-optical sensors and systems, eddy-current, capacitive, LVDT & inductive, potentiometric and draw-wire principles. In addition, Micro Epsilon has developed its own range of non-contact infrared temperature sensors that can measure virtually any target temperature from -40 to +3,300°C. The company also manufactures a comprehensive range of colour recognition sensors.

With more than 45 years' experience in the industry, Micro-Epsilon isn't just a sensor manufacturer. The company is highly innovative and understands the importance of providing complete solutions and support services for its customers. The firm is renowned for its expertise in consulting, development and application of industrial sensors to complex, customer-specific solutions for measurement, inspection and automation. The focus is on selling technical advantage to its customers.
