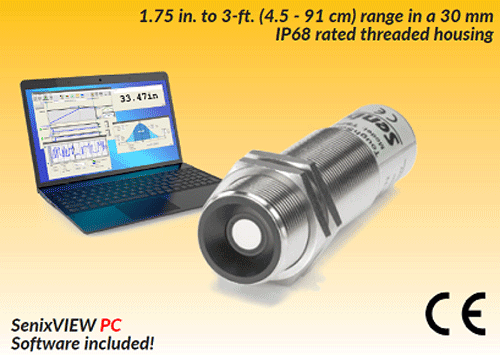

ToughSonic® 3 Level & Distance Sensor
Windows PC or Button Setup, Waterproof, Multiple Outputs

TSPC sensors and SenixVIEW software put the power of ultrasonics in your hands yet retain the simplicity of push-button TEACH setup. You can quickly adjust, optimize, save and clone your applications without calibration!

Built rugged as with all ToughSonic sensors, the ToughSonic 3 is designed to address close up and shorter working distance requirements. Narrow beam width and shortened minimum range gives close-up versatility.

Digital and analog outputs respond to measured distance. Non-contact technology means nothing touches your material.

Distance Measurements
* Short 1.75 inch dead band
* Unaffected by optical factors like color and transparency
* PC or button "teachable" setup
* Narrow beam with adjustments to optimize performance
* Temperature compensated

Packaging & Performance
* Quick mounting
* Durable sealed housing for wet or dirty applications
* Short & overload protected I/O
* Multi-sensor synchronization
* Adjustable sensitivity
* Rear status indicators (3)

Free Functionality using adjust- able interface features like switch hysteresis and time delays to build complete solu- tions such as pump or material flow controllers. Save cost by eliminating PLCs, delay circuits and time delay relays!

PC Setup Power
Use SenixVIEW software (see separate data sheet) to select and adjust all interfaces, timing parameters, filters and modes. Then view, analyze or log data to optimize your application.

Flexible configuration means fewer parts to stock and quick duplication! Higher volume OEM options are available.

Push-button "teach" features provide for several common adjustments when a PC is not available.

Output Selection
In addition to the model's serial data interface there are two SenixVIEW selected outputs to suit your application. All outputs have configurable endpoints, set- points, event responses and time delays.

Voltage & Current Loop are both provided simultaneously in standard (0-10 VDC, 4-20 mA) or custom ranges. They are fully configurable and can either rise or fall with increasing distance.

Switches can be selected in lieu of one or both analogs, and set to either "PNP" or "NPN" type (sourcing or sinking). Each has independently adjustable set point, hysteresis, window, initial conditions, ON delay, OFF delay and loss of target response for ultimate flexibility.

More information on the Senix ToughSonic 3 Sensors >>

For more information, please contact:

10516 Route 116, Suite 300, Hinesburg, VT 05461 USA
Tel: US & Canada: +1 888-884-5675 +1 802-444-0114
Fax: +1 802-489-7400

May 2019
