Variohm Eurosensor - PRODUCT NEWS









Expanded choice for well proven linear position sensor range: Novotechnik add new measuring lengths for LWG series

Recently announced by Novotechnik, the German measurement technology leader, and available from its UK distribution partner Variohm EuroSensor, LWG series linear position sensors are now available in six additional standard measurement lengths. Adding increased flexibility for closed loop position feedback and other precision measurement tasks in industrial automation, mobile machinery, high-speed robotics and more, the well proven LWG series now has twenty specifiable measurement ranges from 50 mm to 750 mm with a choice of 4-pin M12 connector or flying lead electrical connection.

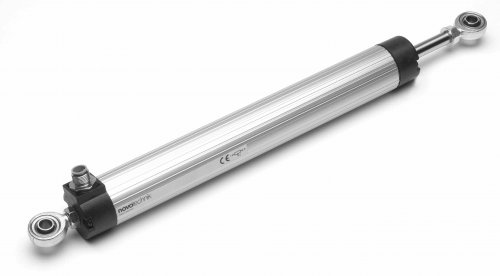

LWG series linear position sensors feature a durable conductive plastic resistance element and elastomer-damped multi-finger wiper system with precious metal brushes for a highly repeatable and precise potentiometric output. The rod and cylinder design is easily mounted via rod end bearings with a typical and generous pivot angle of +/- 12.5 degrees. The robust sealed aluminium housing protects the sensor and supports the stainless steel rod with twin slide bearings and lip seal providing IP65 protection (IP67 is available on the heavy duty LWX version). The LWG sensor provides position output with a typical resolution of better than 0.01 mm and independent linearity up to 0.05 % of full scale for the 750 mm version.

Its absolute measurement principle suits control tasks where a reference position is required on power-up – with no homing required and no fear of position loss when re-starting after power loss. With a temperature range from -30 °C to +100 °C, and with a generous shock rating of 50 g and vibration to 9 g at 2000 Hz, the LWG linear position boasts an operational life of more than 50 million movements. Accessories include IP67 rated M12 connectors, output displays and a choice of signal conditioners for panel and Din-rail mounting.

As a manufacturer, distribution partner and supply chain partner, Variohm EuroSensor’s product sales and application support spans a comprehensive range of position, force, pressure, load, and temperature sensor technologies - for demanding measurement applications across industry, construction, agriculture, motorsports, research and more. For more information on the Novotechnik LWG series visit www.variohm.com, email sales@variohm.com or call +44 (0) 1327 351004.


About Variohm EuroSensor
Variohm EuroSensor is a manufacturer, distributor and supply chain partner providing complete sales and application support across a comprehensive range of position, force, pressure, load, and temperature sensor technologies - for demanding measurement applications across industry, construction, agriculture, motorsports, research and more.


About Variohm Holdings
Comprising four closely linked operating divisions, staffed by highly experienced motion and sensor application specialists with extensive knowledge of international standards; Variohm Holdings combines its considerable design and manufacturing capability with best of brand products and components from leading global partners to provide engineered solutions that are seamlessly and cost effectively integrated for your application.
