Variohm Eurosensor - PRODUCT NEWS






Strainsert’s new wireless load sensors and load cell telemetry systems


Two new high-performance load sensor products from Strainsert Inc., based on license-free, 2.4GHz telemetry with a working range up to 800 metres, will facilitate straightforward and cost-effective installation for single- or multi-sensor use over long distances, problematic installations and otherwise challenging load measurement tasks.

Strainsert’s new wireless load sensors and load cell telemetry systems
Especially compelling as an alternative for system set-ups where long and noise-prone cable runs in traditional wired systems prove complex and expensive, the new wireless load sensors and load cell telemetry systems are available in the UK from Ixthus Instrumentation, Strainsert’s exclusive UK distribution partner.

The new products include wireless load pins with integrated wireless transmitters, configured as standard or custom designed clevis pins or shackle bolts for single or multiple sensor systems. Complementary to these wireless-integrated sensors, the newly available T24 series wireless load cell telemetry system comprises modular transmitters, base stations and accessories with the adaptability for conversion of existing wired Strainsert sensors with strain, current or voltage output - or for the development of completely new wireless system designs.

With IP67 rated enclosures and built for the harshest conditions for weighing and load monitoring tasks in aerospace, industrial, construction, mobile machinery and more, the range is supported with comprehensive software tools for straightforward configuration and monitoring.

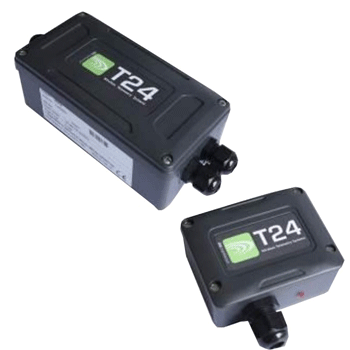

Strainsert’s T24 wireless transmitter modules are available in two module sizes with a choice of batteries – a compact AA cell version or for longer battery life a larger sized D cell module. The electrical and range performance specifications for both modules are similar. The 4-wire bridge measurement and 4.5 to 5.25 VDC excitation characteristics suit Strainsert sensor requirements. The modular system offers a choice of four USB powered base stations that are used for interfacing with PCs or PLCs through a choice of USB, RS232 or RS485 ports for configuration and control. They work in concert with the T24 transmitter modules, facilitating the data capture through the T24 software toolkit which is included with the wireless systems. Further system accessories include Modbus Gateway and ASCII serial interfaces, analogue and relay output modules and wireless range extenders for up to 1600 metres. Also included are wireless handheld receivers and LED display modules.

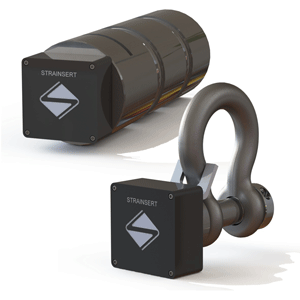

The Strainsert wireless load pin has all the specification characteristics and interfacing possibilities offered by the T24 telemetry systems with the potential advantage found in its integrated load sensor component and transmitter design that can further aid installation planning and commissioning.

Ixthus represents global sensor technology leaders like Strainsert Inc. for force, torque and vibration measurement. Its knowledgeable technical staff are on hand to assist with measurement solutions, providing a complete sales and support service at component level or for complete instrumentation systems.
For further information please call +44 (0) 1327 353437, email info@ixthus.co.uk or visit www.ixthus.co.uk.


About Variohm EuroSensor
Variohm EuroSensor is a manufacturer, distributor and supply chain partner providing complete sales and application support across a comprehensive range of position, force, pressure, load, and temperature sensor technologies - for demanding measurement applications across industry, construction, agriculture, motorsports, research and more.


About Variohm Holdings
Comprising four closely linked operating divisions, staffed by highly experienced motion and sensor application specialists with extensive knowledge of international standards; Variohm Holdings combines its considerable design and manufacturing capability with best of brand products and components from leading global partners to provide engineered solutions that are seamlessly and cost effectively integrated for your application.

For more information, please contact:-

Variohm-EuroSensor
Williams' Barn, Tiffield Road, Towcester Northants NN12 6HP United Kingdom
Tel: +44(0) 1327 351004
Fax: +44(0) 1327 353564
Email:
graham@variohm.com
Web:
www.variohm.com

April 2021
