Waycon Positionmessetechnik GmbH - PRODUCT NEWS

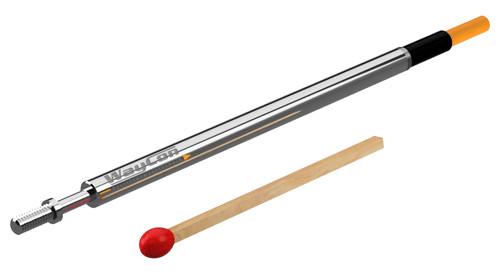

Inductive sensors LVDT series LVISM - Hardly larger than a match

With a housing diameter of only 4 mm, the LVISM is one of the smallest LVDT sensors of its kind. Furthermore, with a length of 7 cm it is not even twice as long as a match.


Despite its miniature housing, the LVDT series offers measuring ranges of up to ±5 mm with an accuracy of up to ±0.25 %. The LVISM is also in no way inferior to its larger relatives when it comes to environmental protection. The LVISM has an IP65 protection
class and a temperature range of -25 to +85 °C.

LVDT displacement sensors are ideal for absolute measurements in harsh environmental conditions. Due to their inductive measuring principle, they operate wear-free and are very durable. They are used in all industrial sectors from manufacturing to research.

Connected to external electronics, the LVISM miniature sensor outputs an analog signal of 0 to 10 V or 4 to 20 mA. Thus, the sensor can be connected directly to a control or display device.

WayCon offers a practical solution for this with the LVC cable electronics. The LVC has a compact housing (6 x 3.5 cm) and is permanently connected to the sensor cable. Alternatively, the external electronics LVA can be used, which is suitable for safe mounting on a DIN rail.

Data sheet >>

More Information >>


About Waycon
WayCon Positionsmesstechnik GmbH has been developing and manufacturing precision sensors for position and distance measurement since 1999. As an innovative company with headquarters in Taufkirchen near Munich and a branch in Brühl near Cologne, we sell our products all over the world. Our goal is to provide our customers with the best possible measurement technique solution: from high-quality sensors from the standard range to customer-specific solutions, from prototype to series production - for the most varied applications in industry and research. The products made in Taufkirchen are subject to rigorous quality standards and every single one is delivered to our customers with a calibration certificate.
