Waycon Positionmessetechnik GmbH - PRODUCT NEWS

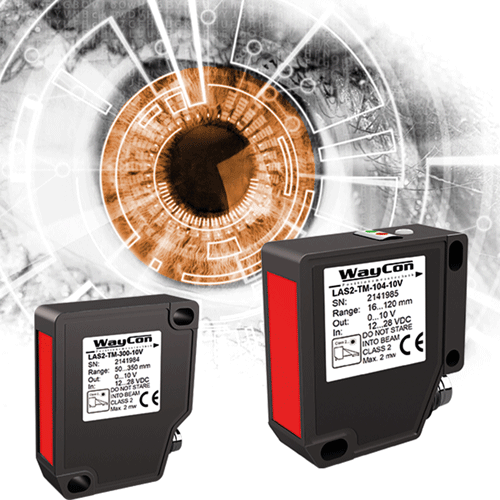

Laser Displacement Sensor LAS2-TM - Powerful sensors in a compact design

Laser distance sensors of the LAS2-TM series impress with their high precision and their miniature housing.

The optical sensors measure precisely at distances of up to 500 mm and achieve a linearity of ±0.13 % in addition to a repeatability of 4 µm. If the full measuring range is not used, linearity and repeatability can be improved by so-called teaching. In this process,
the exact measuring range limits are taught in and the accuracy is thus improved.

With a measuring frequency of 5 kHz, the sensors are also ideally suited for dynamic applications such as chassis monitoring in the automotive industry or tolerance checks in production engineering.

Thanks to their high immunity to ambient light and a protection class of IP67, the optical sensors of the LAS2-TM series can also be used in demanding environmental conditions where other laser sensors fail. The analog output signal (4 to 20 mA or 0 to 10 V) of
the laser sensors can be read out and displayed directly without further electronics, e.g. by WayCon's WAY-AX digital displays.

Measurements with the LAS2-TM series are performed using the triangulation principle. The sensors are equipped with a laser emitter and a laser receiver. The laser beam sent by the emitter is reflected by the target object and detected by the receiver. The distance to the target object is determined by the angle of the reflected laser beam.

Product Page >>

Data sheet >>


About Waycon
WayCon Positionsmesstechnik GmbH has been developing and manufacturing precision sensors for position and distance measurement since 1999. As an innovative company with headquarters in Taufkirchen near Munich and a branch in Brühl near Cologne, we sell our products all over the world. Our goal is to provide our customers with the best possible measurement technique solution: from high-quality sensors from the standard range to customer-specific solutions, from prototype to series production - for the most varied applications in industry and research. The products made in Taufkirchen are subject to rigorous quality standards and every single one is delivered to our customers with a calibration certificate.

For more information, please contact :-

WayCon Positionsmesstechnik GmbH
Marcus Venghaus
Mehlbeerenstraße 4
82024 Taufkirchen
E-Mail:
presse@waycon.de
Internet:
www.waycon.biz

Waycon Positionsmesstechnik GmbH
Mehlbeerenstr. 4
82024 Taufkirchen
Germany
Fon: +49 (0) 89 - 6797130
Fax: +49 (0) 89 - 679713250
E-Mail:
info@waycon.de
Internet:
http://www.waycon.biz/products/

July 2021
