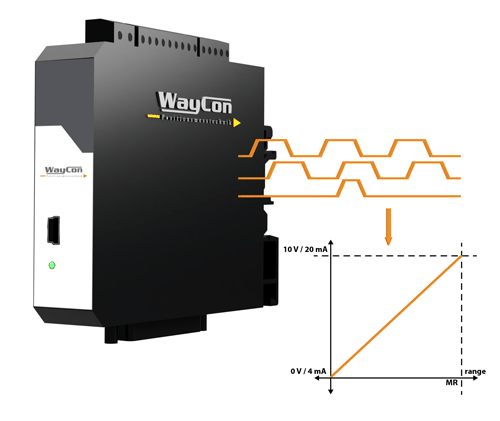

Analog Signal Conditioner IMX – a device that’s three in one

With the IMX, WayCon Positionsmesstechnik offers a device that quickly converts input signals (position, frequency, SSI and speed) into absolute analog values. The analog variables of current and voltage can be scaled from 0/4 ... 20 mA and -10...+10 V respectively as desired.

The IMX can read TTL / RS422, HTL differential, HTL PNP and HTL NPN incremental input signals and also has an SSI interface. The analog signal conditioner stands out for its rapid processing of signals up to 1 MHz, which are converted almost instantaneously.

The converted signals are available for further processing at 16-Bit resolution and up to 32-Bit resolution with the SSI interface.

The analog signal conditioner IMX supplies measuring sensors with up to 24 VDC. As a universal signal conditioner, the IMX facilitates linkages with almost all industrial sensors. Six control inputs and outputs maximise the flexibility of the device - and it all comes
together in one compact unit. The housing is made of high-quality plastic with a 35 mm DIN rail according to the EN 60715 standard. This makes for a light device weighing just 100 g.

Product Page >>

Data sheet >>


About Waycon
WayCon Positionsmesstechnik GmbH has been developing and manufacturing precision sensors for position and distance measurement since 1999. As an innovative company with headquarters in Taufkirchen near Munich and a branch in Brühl near Cologne, we sell our products all over the world. Our goal is to provide our customers with the best possible measurement technique solution: from high-quality sensors from the standard range to customer-specific solutions, from prototype to series production - for the most varied applications in industry and research. The products made in Taufkirchen are subject to rigorous quality standards and every single one is delivered to our customers with a calibration certificate.
