Multi-sensor PCB PVL4M for absolute angle measurement and permanent revolution counting due to a super cap.

TMR & Hall - Combined Angle Sensor with Automatic Position Correction and Multiturn

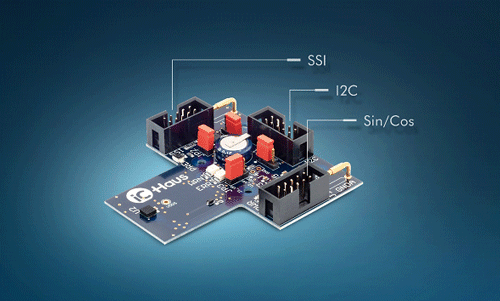

The development board PVL4M provides, for the first time, a TMR angle sensor (picture shows the application with the TA903 from Sensitec) in combination with the Hall sensor iC-PVL from iC-Haus for absolute angle measurement and revolution counting at the free shaft end, the so-called end-of-shaft position.

Evaluation of the two sensors is performed by the new 26-bit encoder signal processor iC-TW29 with integrated EEPROM. For combination with the PVL4M sensor board, there are various iC-TW29 evaluation boards available. The sine/cosine signals from the TMR sensor are processed in the chip, interpolated, and then output with an arbitrarily selectable singleturn resolution, e. g. via BiSS interface with an angular resolution of 18 bits and 24 bits revolution counting. Due to a super cap on the sensor board, non-disruptive revolution counting by iC-PVL is possible - even over several hours without external supply.

The data output follows the shaft angle with a delay of only 1.5 µs, which is very close to that of optical encoders. Simultaneously, automatic correction of dynamic signal errors ensures high measurement accuracy over temperature or with axial backlash of the motor shaft. The high signal quality of the TMR sensor enables better repeatable angle measurements with low hysteresis.

Position output via SPI or as incremental quadrature signals with index at any arbitrary FlexCount® resolution from 1 to 32,768 pulses is also possible.

Further information is available at http://www.ichaus.de/tw29


Introducing iC-Haus
iC-Haus GmbH is a leading, independent German manufacturer of standard iCs (ASSP) and customized ASiC semiconductor solutions with worldwide representation. The company has been active in the design, production, and sales of application-specific iCs for industrial, automotive, and medical applications for more than 35 years.
The iC-Haus cell libraries in CMOS, bipolar, and BCD technologies are specifically suited to realize the design of sensor, laser/opto, and actuator ASiCs, among others. The iCs are assembled in standard plastic packages or using the iC-Haus chip-on-board technology to manufacture complete microsystems, multichip modules, and optoBGA/QFN in conjunction with sensors.
